300-1200MM LED Strip Line PCB Separation Machine Customized Fixture and BladesTechnical requirements:
1. Light bar length (1500D type) 600~1500mm (replacement of bottom plate jig);
2. Width of the light bar (1500D type) 6~12mm (replacement of jig, knife seat, both sides of the pressure block);
3. Each cut 30;
4. There are positioning holes at the front and rear ends of the light bar;
5. Light bar substrate manual feeding.
300-1200MM LED Strip Line PCB Separation Machine Customized Fixture and Blades Features:
Microcomputer control, Chinese and English human-machine interface;
The machine automatically cuts, the high accuracy of the sub-board, neat cut surface;
According to different product replacement knife group, fast, convenient and simple;
Speed, high efficiency, reach the energy can reach 10000PCS/H.
300-1200MM LED Strip Line PCB Separation Machine Customized Fixture and Blades Description:
1.The purpose of this manual is to guide users to use the device correctly, reduce unnecessary waste, ensure that the device can function properly, and maximize the benefits for the user;
2. Flexible PCB panel is to be separated into single PCB;
3.The key components such as cylinders are all imported components, so
that the machine is quick and stable during the operation, avoiding the
error of mechanical action;
4.Using Mitsubishi PLC and Weilun touch screen control system, the
position and speed can be set;
5.The moving part of the cutter adopts precision micro-stepping motor
to ensure the smooth running track and the cutting length can be set.
300-1200MM LED Strip Line PCB Separation Machine Customized Fixture and Blades Application:
1. Manually on the FPC light bar;
2. Automatic cutting;
3. Suitable for all light strips with a board width of less than 12mm (replacement of jigs, toolholders, and clamps on both sides);
4. Knife modular, replaceable.

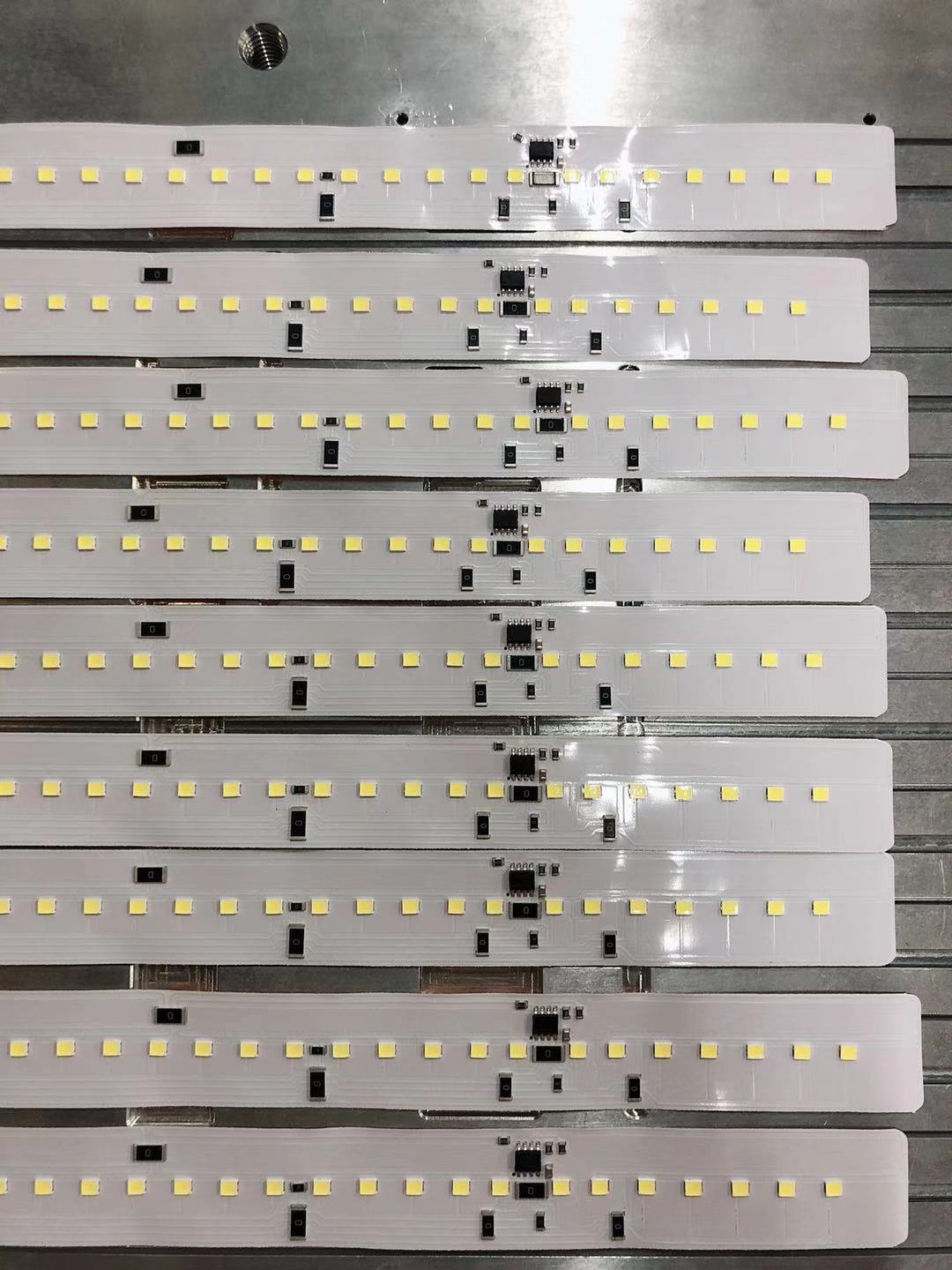

Samples after the Flexible PCB Separator Machine
Product Tags:
|
|
300-1200MM LED Strip Line PCB Separation Machine Customized Fixture / Blades Images
|
